Platforms
MidBot
Wheeled platform for outdoor field operations.

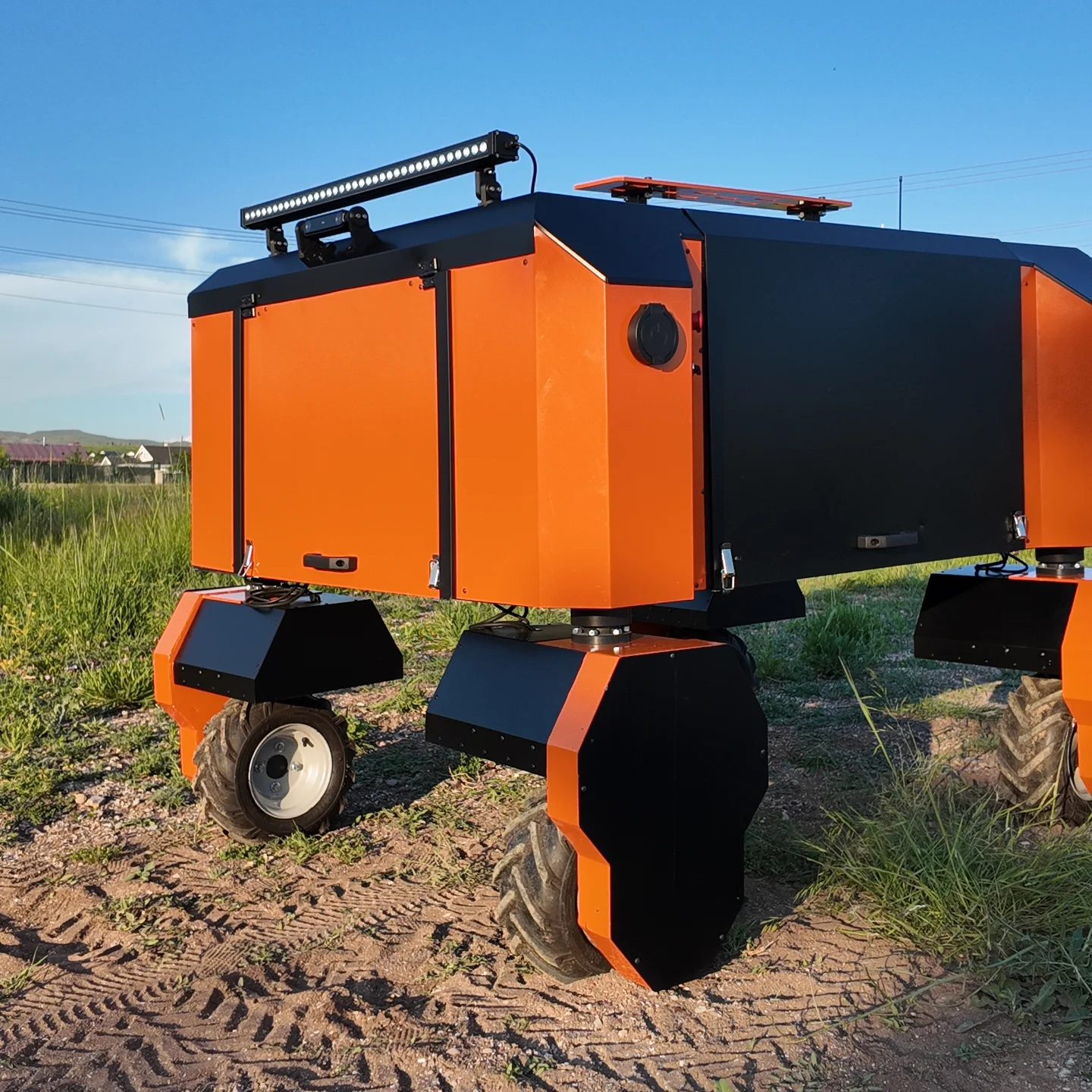

MidBot is the larger of the two ROBEX ground platforms — a four-wheeled system built for outdoor terrain and field operations.
MidBot
Gallery
Payload Capacity400 kg
Weight~800 kg
Continuous Speed5.6 km/h
Dimensions183 × 153 × 143 cm
Technical Specifications
Vehicle
- Width
- 153 cm
- Length
- 183 cm
- Height
- 143 cm
- Main Body Clearance
- 70 cm
- Track Width
- 124 cm
- Wheelbase
- 149 cm
- Wheel Diameter
- 40 cm
- Weight
- ~800 kg
- Payload Capacity
- 400 kg
- Continuous Speed
- 5.6 km/h
Drive
- Motor Count
- 4
- Motor Power
- 4 × 1.5 kW
- Total Rated Drive Power
- 6 kW
- Rated Torque
- 4.9 Nm
- Max Torque
- 14.7 Nm
- Rated Motor Speed
- 3000 rpm
- Max Motor Speed
- 5000 rpm
Supported Payloads
