Platforms
MiniBot
Compact wheeled platform for tight spaces.

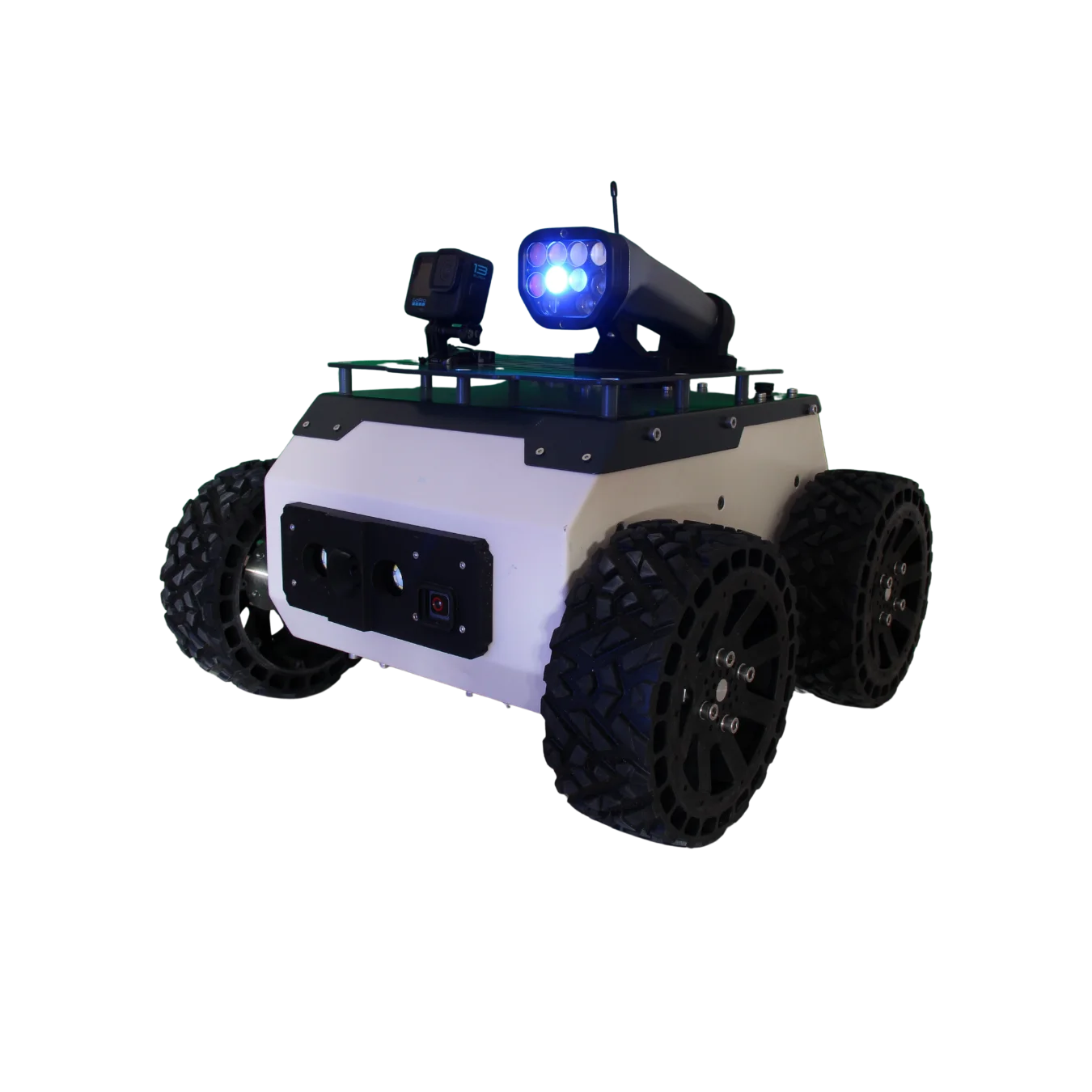

MiniBot is the compact ROBEX ground platform — a four-wheeled system sized for confined spaces and rapid deployment.
MiniBot
Gallery
Payload Capacity20 kg
Weight12.2 kg
Runtime2 h
Speed4.4 km/h
Technical Specifications
Vehicle
- Width
- 44.5 cm
- Length
- 45 cm
- Height
- 23.5 cm
- Ground Clearance
- 9.5 / 6.2 cm
- Track Width
- 25.8 cm
- Wheelbase
- 37.3 cm
- Wheel Diameter
- 19.2 cm
- Weight
- 12.2 kg
- Payload Capacity
- 20 kg
- Speed
- 4.4 km/h (1.22 m/s)
- Max Gradient (loaded / unloaded)
- 30% / 60%
- Runtime
- 2 h
- Body Material
- Aluminium
Battery
- Voltage
- 14.6 V
- Capacity
- 24 Ah
- Energy
- 350 Wh
- Battery Weight
- 2.5 kg
- Cell Count
- 16
- Cell Chemistry
- LiFePO₄
Drive
- Motor Power
- 4 × 85 W
- Rated Torque
- 5 Nm
- Max Torque
- 14.8 Nm

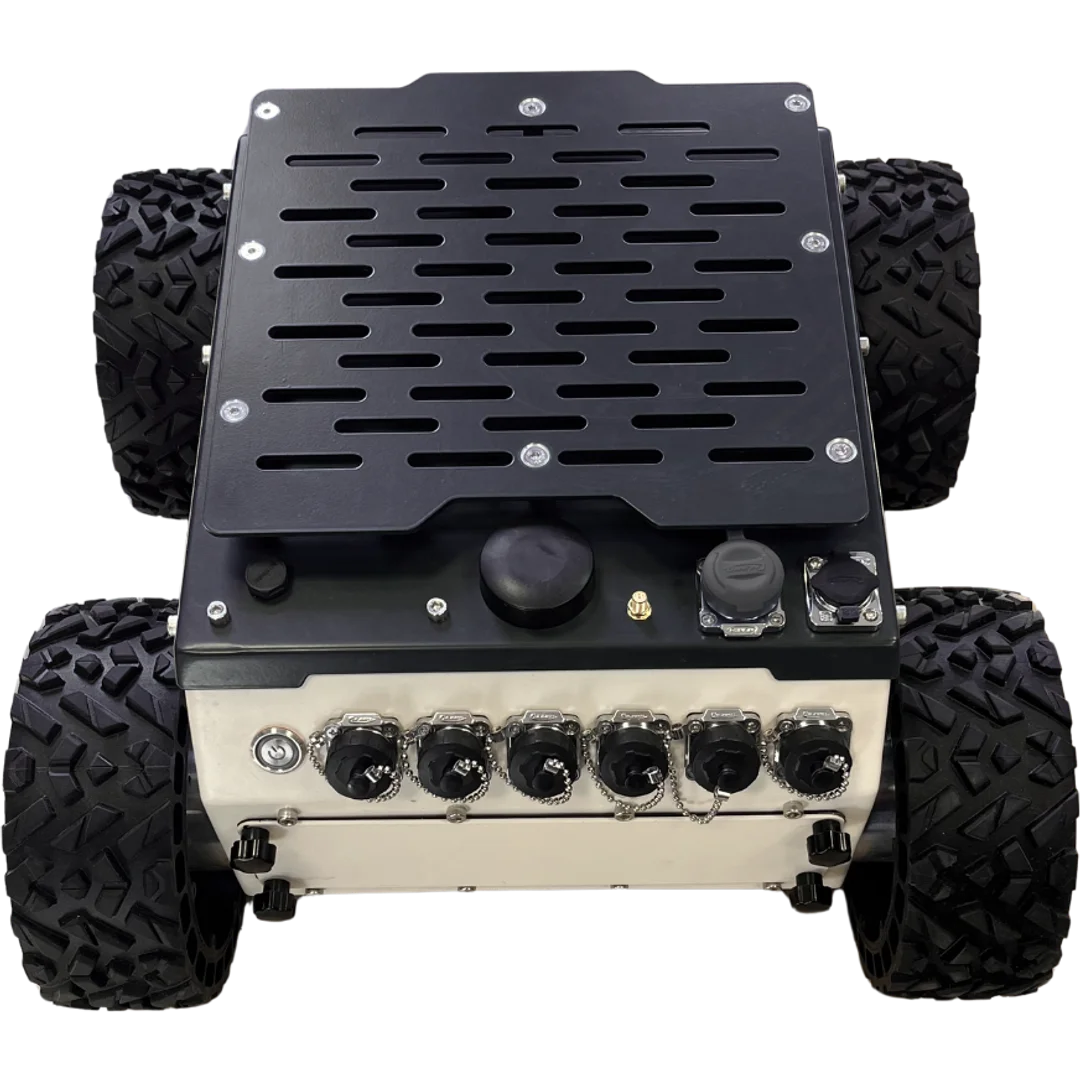

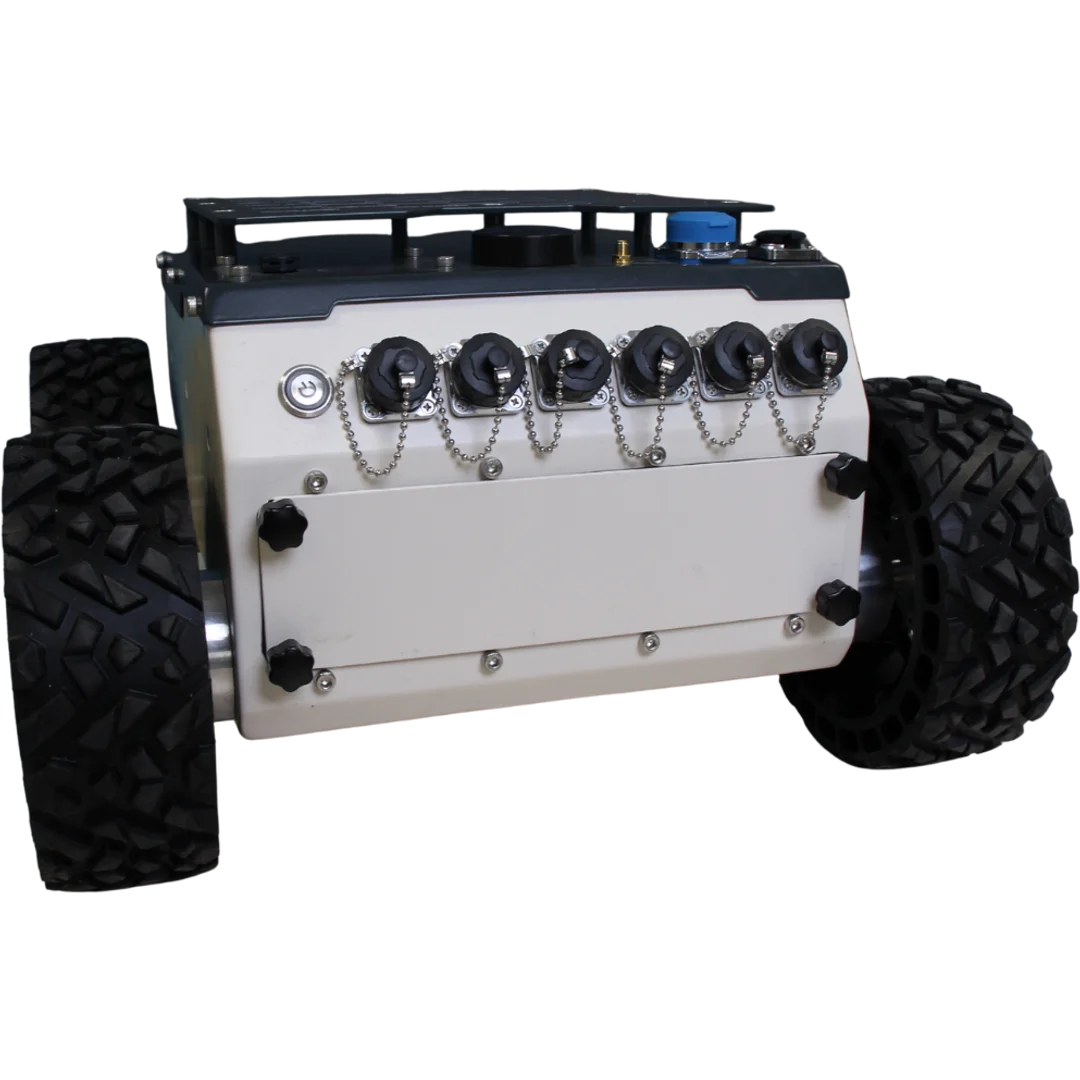

Payload Interfaces
Data Interfaces
- I²C 5 VDC
- SPI 3.3 VDC
- UART 5 VDC
- USB-A
- Ethernet
Power Outputs
- 12 VDC (×2)
- 5 VDC (×2)
- 24 VDC
Onboard Sensors
Onboard Sensors
- RGB camera 1080p
- Thermal camera (−20/45 °C)
- PM2.5 particulate sensor
- Temperature, humidity & pressure sensor
- Volatile organic compound (VOC) sensor
- GNSS
- IMU
- Quadrature encoder (per motor)
Designed For
Inspection
Autonomous industrial facility and infrastructure monitoring
Security & Surveillance
24/7 autonomous perimeter protection and threat detection
Survey & Mapping
High-precision 3D terrain and asset documentation
Forensic Investigation
Evidence collection and scene analysis support
Hazard Response
Chemical, biological, and radiological detection

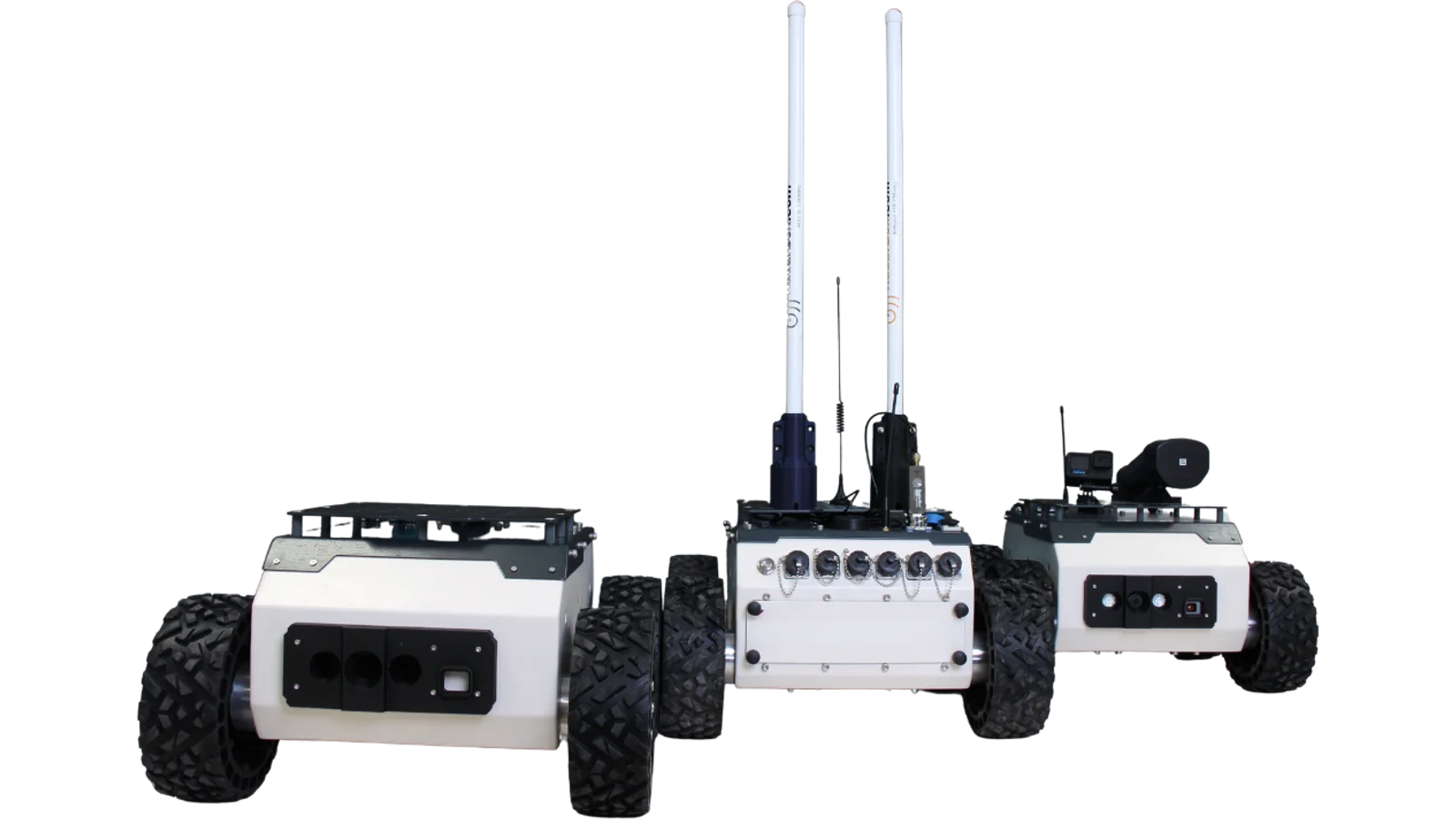

Supported Payloads
